• Air conditioning, dual-zone, manual, individual climate settings for driver and right front passenger (May be substituted with (C42) Air conditioning delete on Regular Cab Models)
• Assist handle, front passenger (Also includes rear outboard passenger assist handle on Extended and Crew Cab models)
• Cigarette lighter, on instrument panel
• Coat hook, driver side (Also includes passenger side coat hook on Extended and Crew Cab Models)
• Cupholders, front (Also includes rear cupholders on Extended and Crew Cab Models)
• Door trim, side reflectors
• Floor covering, Graphite-colored rubberized vinyl (Required with (52V) Neutral vinyl or (69V) Dark Pewter vinyl)
• Headliner, Shale-colored cloth, with matching retainer moldings
• Lighting, dome lamp, reading, backlit instrument panel switches and door handle-activated illuminated entry
• Mirror, inside rearview, manual day/night
• Power outlets, auxiliary, covered, 2 dash-mounted, 12-volt
• Seat trim, vinyl (Requires (PDP) Floor covering, Graphite-colored rubberized vinyl)
• Seats, front 40/20/40 split-bench, 3-passenger with outboard head restraints and manual recliners
• Sound system feature, 4-speakers
• Sound system, ETR AM/FM stereo, includes seek-and-scan and digital clock (Upgradeable to (UB0) Sound system, ETR AM/FM stereo with CD player)
• Steering wheel, includes theft-deterrent locking feature
• Theft-deterrent system, PASSlock II
• Visors, padded, Shale-colored, driver and passenger side with cloth trim, extenders, pocket on driver side and vanity mirror on passenger side
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle up reminder, turn signal on

• Alternator, 105 amps
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, hydroformed
• GVWR, 9200 lbs. (4173 kg) (Must specify on TC25903, TK25753 and T*25743 Models)
• Pickup bed, Wideside box (May be substituted with (ZW9) Pickup bed, delete on T*259*3 Models)
• Rear axle, 4.10 ratio
• Recovery hooks, front, frame-mounted (Standard on 4WD Models only)
• Steering, power
• Suspension Package, Handling/Trailering, heavy-duty, includes 36mm piston monotube shocks
• Suspension, front, independent torsion bar, and stabilizer bar
• Suspension, rear, semi-elliptic 2-stage multi-leaf springs
• Tire carrier, outside spare, winch-type mounted under frame at rear
• Tires, LT245/75R16E, all-season, blackwall (Includes 5 tires with (E63) Pickup bed, Wideside box. - Includes 4 tires with (ZW9) Pickup bed, delete)
• Tools, mechanical jack and wheel wrench located in back of cab
• Transfer case, floor-mounted shifter (Requires 4WD Models)
• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) 8-lug steel, painted, includes painted center caps and steel spare

• Air bags, frontal, driver and right front passenger (Regular and Extended Cab Models includes passenger side deactivation switch. - Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owner's Manual for more safety information)
• Brakes, 4-wheel antilock, 4-wheel disc
• Daytime running lamps, includes automatic exterior lamp control

ENGINE, VORTEC 6000 V8 SFI

• (300 HP [223.8 kW] @ 4400 rpm
• 360 lb.-ft. [486.6 N-m] @ 4000 rpm) (STD)

• Multi-Zone A/C

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4500
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3074
• Curb Weight - Rear (lbs): 2147
• Gross Vehicle Weight Rating Cap (lbs): 9200
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10300
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1545
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 10300
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2575
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 4500
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6900
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 36
• Shock Absorber Diameter - Rear (mm): 36
• Stabilizer Bar Diameter - Front (in): 1.42
• Brakes
• Brake Type: Pwr
• Brake ABS System: Four-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Tires
• Front Tire Order Code: QIZ
• Rear Tire Order Code: QIZ
• Spare Tire Order Code: QIZ
• Front Tire Size: LT245/75R16
• Rear Tire Size: LT245/75R16
• Spare Tire Size: LT245/75R16
• Front Tire Capacity (lbs): 2335
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): 2335
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 43.8
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 133.0
• Length, Overall w/o rear bumper (in): 224.5
• Width, Max w/o mirrors (in): 79.7
• Height, Overall (in): 76.2
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 52.1
• Front Bumper to Back of Cab (in): 114.1
• Cab to Axle (in): 55.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.6
• Ground Clearance, Rear (in): 13.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.6
• Cargo Box Width @ Top, Rear (in): 61.9
• Cargo Box Width @ Floor (in): 64.8
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.5
• Tailgate Width (in): 61.9
• Cargo Volume (ft³): 73.9
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 61.4
• Summary

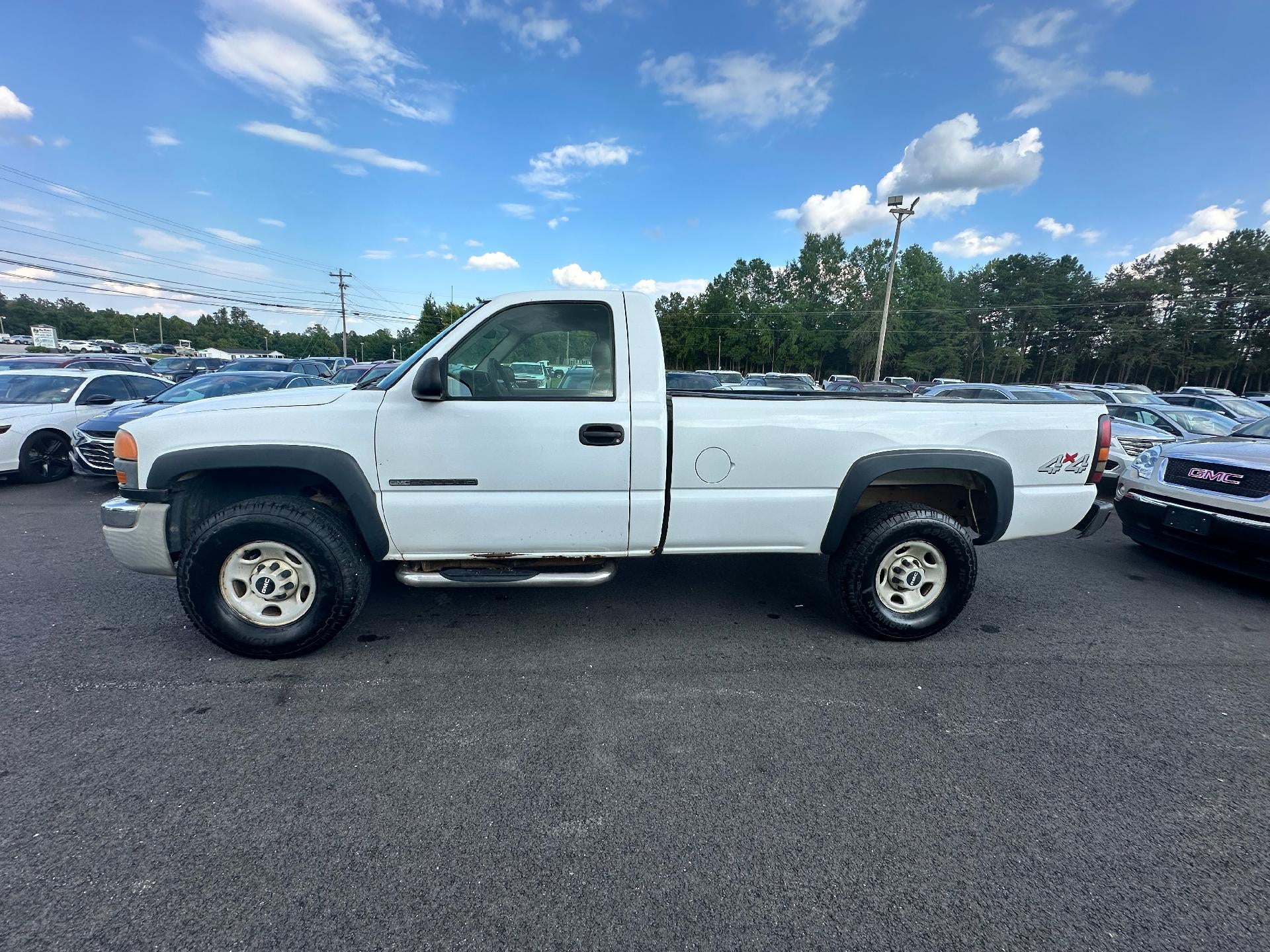

• Vehicle Name: GMC Sierra 2500HD
• Body Style: Reg Cab 8' Wideside
• Body Code: E63
