• Body, standard
• Bumpers, front and rear chrome with step-pad (Included with (ZR7) Chrome Appearance Package.)
• Chrome Appearance Package
• Door, swing-out passenger-side, 60/40 split
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Glass, enhanced-technology, rearmost side windows. 3-layer special glass is designed to help reduce the risk of ejection during a crash (Standard on *G23406, *G33406, and *G33706 models with 12- and 15- passenger seating. Not available with 8-passenger seating.)
• Glass, full-body window package (Includes (A18) swing-out rear cargo door window glass and (A19) swing-out side door window glass.)
• Glass, swing-out rear cargo door windows
• Glass, swing-out side door windows
• Grille, chrome with dual composite halogen headlamps (Included and only available with (ZR7) Chrome Appearance Package.)
• Headlamps, halogen
• License plate kit, front
• Mirrors, outside manual, Black
• Tire, spare LT245/75R16E all-season, blackwall located at rear underbody of vehicle (Standard on *G23406, *G33406 and *G33706 models.)
• Tires, front LT245/75R16E all-season, blackwall (Standard on *G23406, *G33406 and *G33706 models.)
• Tires, rear LT245/75R16E all-season, blackwall (Standard on *G23406, *G33406 and *G33706 models.)
• Wheel trim, chrome center cap (Upgradeable to (P46) 4 - 17" x 7.5" (43.2 cm x 19.1 cm) aluminum uplevel wheels on **13406 models.)

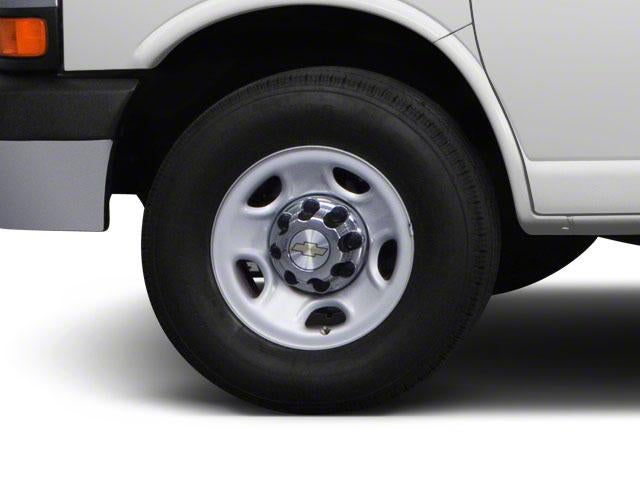

• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) steel includes Gray center caps and steel spare (Standard on *G23406, *G33406, and *G33706 models only.)
• Wipers, front intermittent wet-arm with pulse washers

• Air conditioning, rear
• Air conditioning, single-zone manual
• Assist handle, front passenger
• Compass, 8-point digital located in the Driver Information Center (Included and only available with (C69) rear air conditioning.)

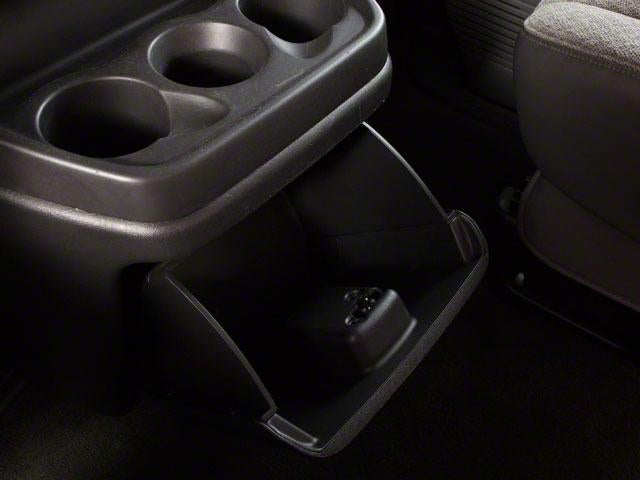

• Console, deluxe with swing-out storage bin
• Convenience Package, Tilt-Wheel and cruise control (Standard on the *G33406 and *G33706 models.)

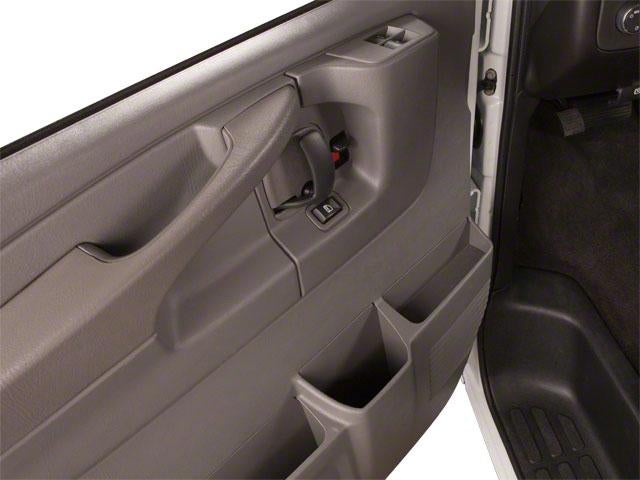

• Convenience Package, power windows and door locks
• Cruise control (Included and only available with (ZQ3) Convenience Package, tilt-wheel and cruise control.)
• Defogger, front and side windows
• Door locks, power with lock-out protection (Included with (ZQ2) Convenience Package.)
• Floor covering, full-floor color-keyed carpeting with front and rear rubberized vinyl floor mats
• Headliner, cloth
• Heater, rear auxiliary
• Lighting, auxiliary with reading and underhood lights
• Lighting, interior with 2 dome lights defeat switch and door handle-activated switches
• Mirror, inside rearview manual day/night
• Oil life monitor
• Remote Keyless Entry with 2 transmitters and remote panic button (Upgradeable to (AP3) Remote vehicle starter system. Not available with (AP3) Remote vehicle starter system.)

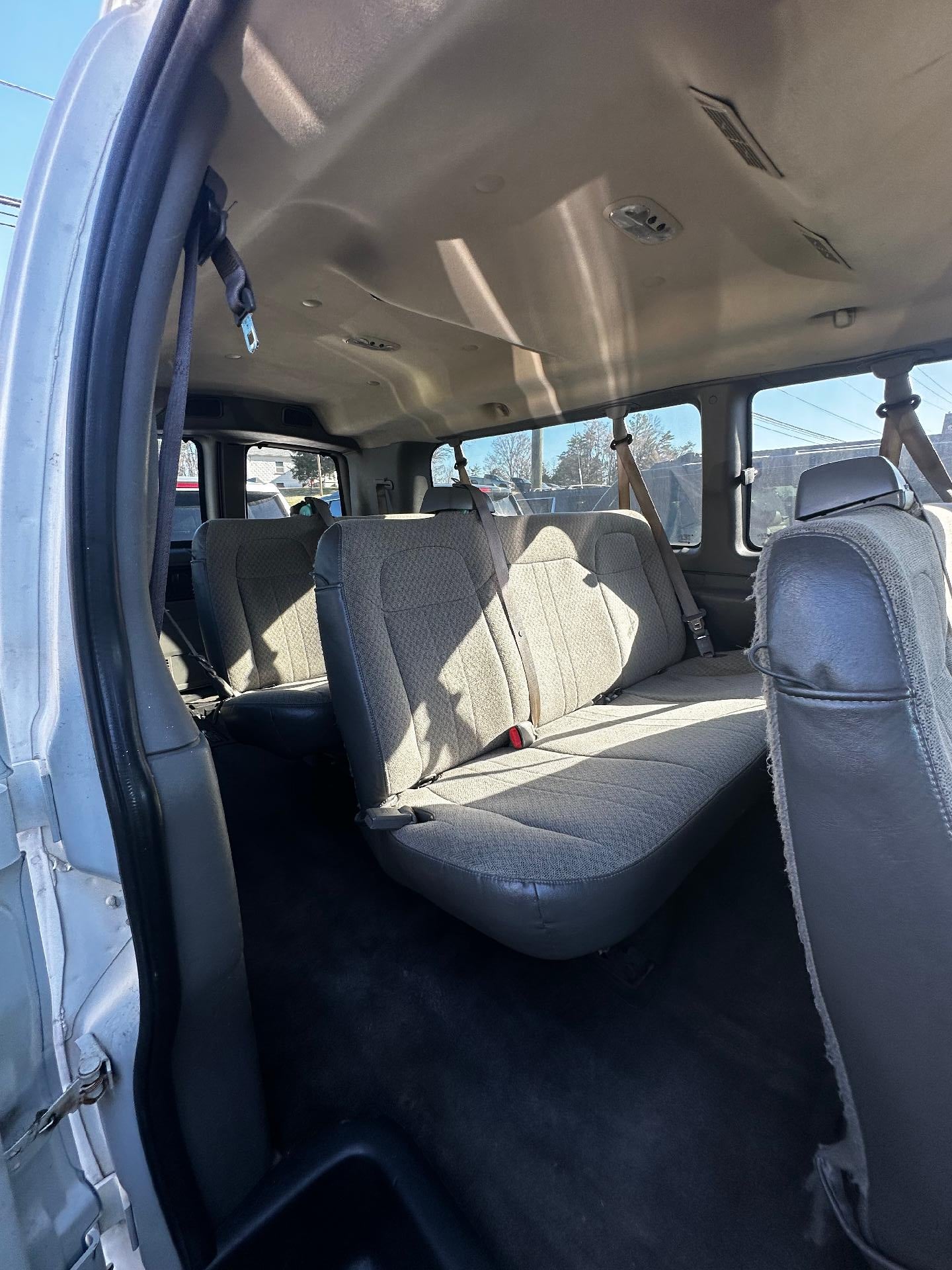

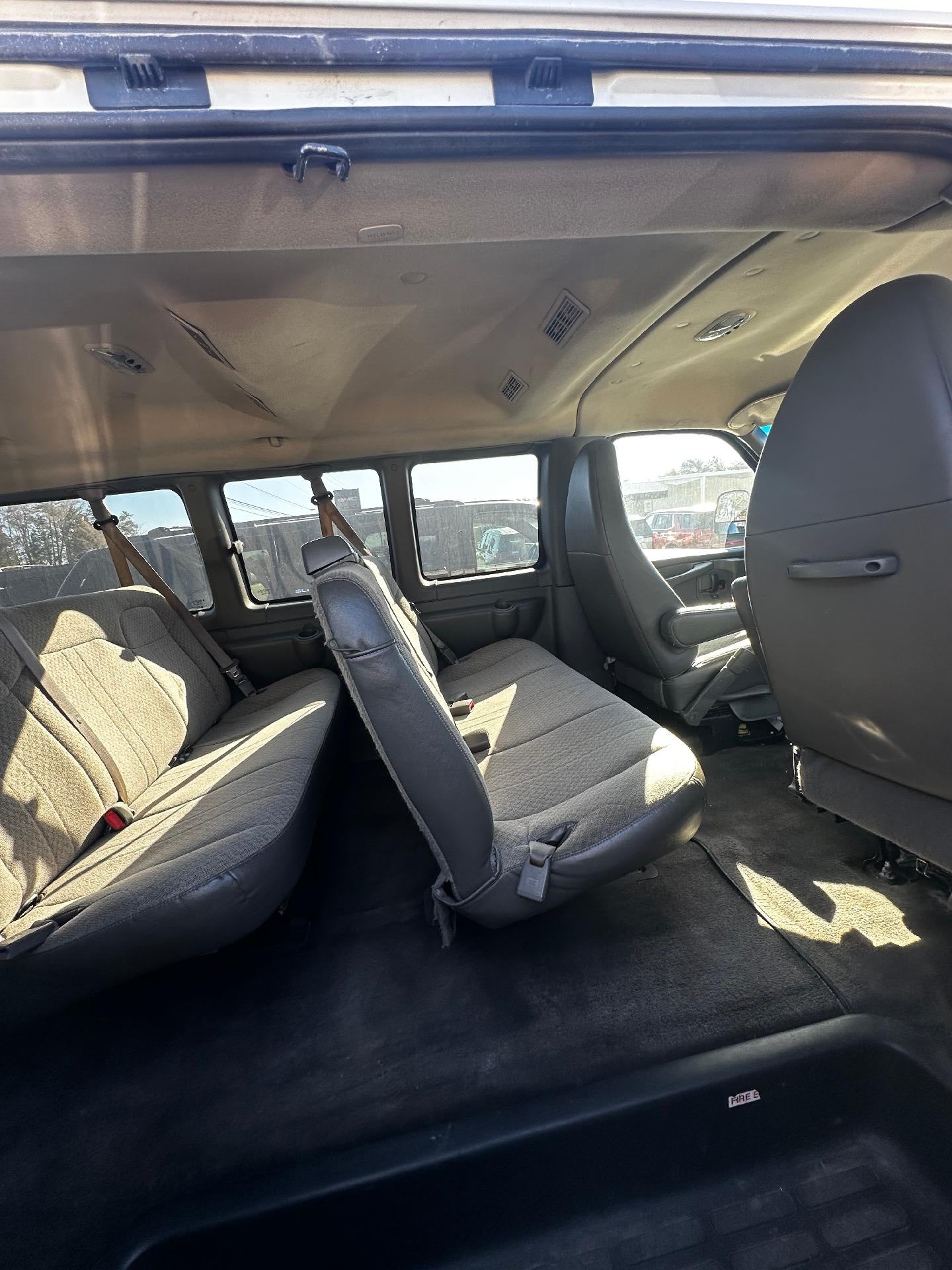

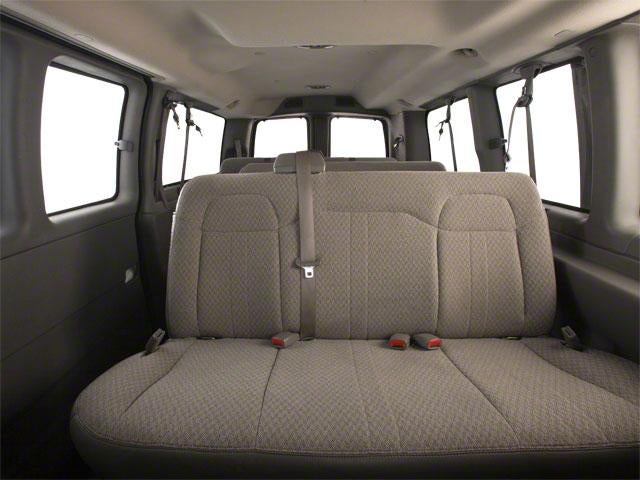

• Seating, 12-passenger, (2-3-3-4 seating configuration) 4-passenger seat is a 50/50 split, 2-piece configuration (Standard on *G23406, *G33406, and *G33706 models only.)

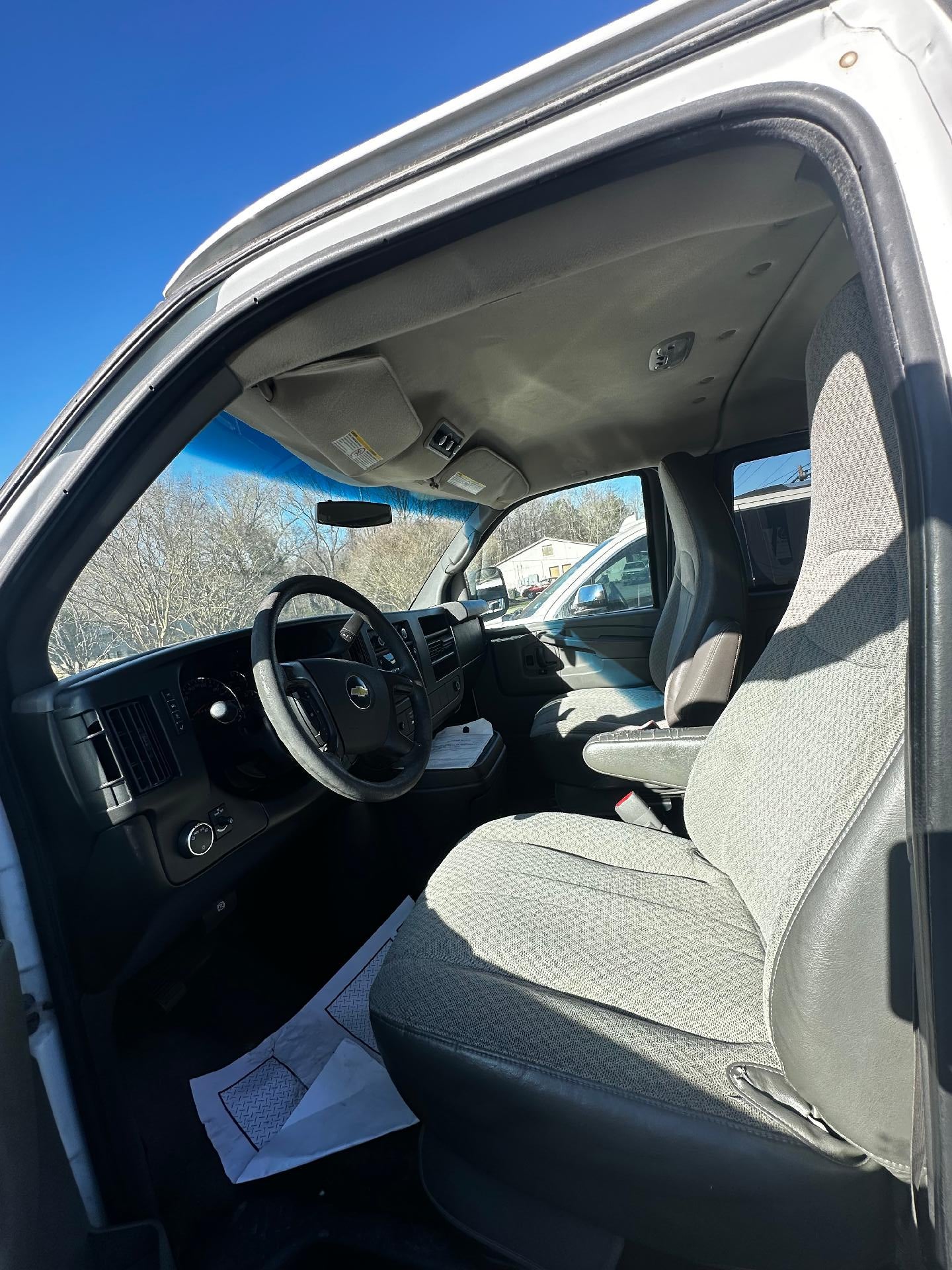

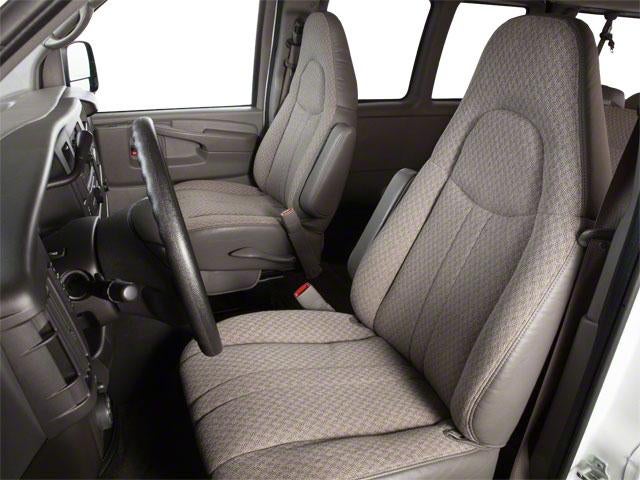

• Seats, front bucket with Custom Cloth trim head restraints and inboard armrests (Requires (**G) interior trim. When ordering a seating arrangement that includes rear seats, includes rear bench seats with Custom Cloth trim. Head restraints are not available on rear bench seats.)

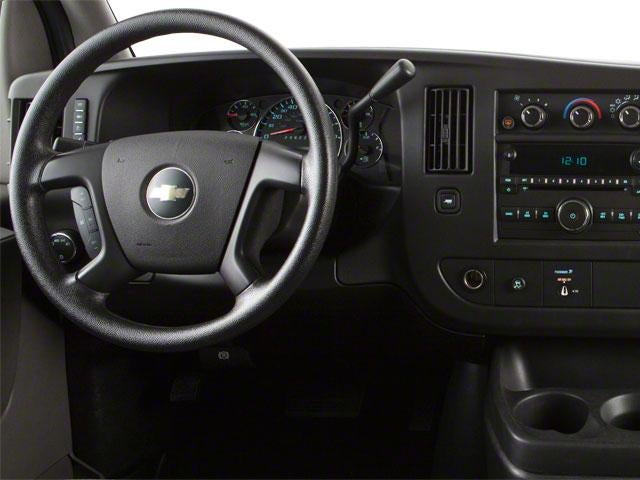

• Steering wheel steel sleeve column with theft-deterrent locking feature, Black
• Theft-deterrent system, vehicle, PASS-Key III
• Visors, driver and front passenger, padded with cloth trim and dual vanity mirrors, illuminated on passenger-side
• Warning tones, headlamp on and key-in-ignition
• Windows, power

• Alternator, 145 amps
• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, ladder-type
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Rear-wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar (Standard and only available on *G***06 models.)
• Suspension, rear hypoid drive axle with multi-leaf springs
• Tow/haul mode selector, instrument panel-mounted

• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch for models with (C6P) 8600 lbs. (3901 kg) GVWR and above. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, head/side-curtain provides coverage for first 3-rows only. Enhanced-technology glass is provided for the fourth and fifth rows when equipped with 12- and 15-passenger seating. (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Child seat anchors all three passenger rear seats have four anchors and two tethers
• Daytime Running Lamps
• Door beams, steel-side
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Tire Pressure Monitor System (does not apply to spare tires)

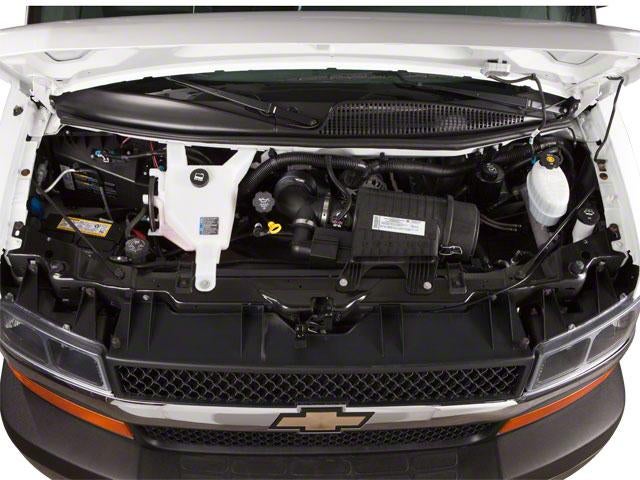

ENGINE, VORTEC 6.0L V8 SFI FLEXFUEL

• (323 hp [240.8 kW] @ 4600 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (STD) Includes external engine oil cooler.

• 3rd Row Seat
• Rear A/C
• Stability Control
• Cloth Seats

• Vehicle
• Rear Door Type: Panel
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3284
• Curb Weight - Rear (lbs): 2967
• Gross Vehicle Weight Rating Cap (lbs): 9600
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9300
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1395
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Maximum Trailering Capacity (lbs): 9300
• Suspension
• Suspension Type - Front: Coil Springs
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Tires
• Front Tire Order Code: XHH
• Rear Tire Order Code: YHH
• Spare Tire Order Code: ZHH
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 54.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid Inboard Rail
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 155.0
• Length, Overall w/rear bumper (in): 244.1
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 82.0
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): 49.4
• Ground to Top of Load Floor (in): 27.3
• Ground Clearance, Front (in): 8.1
• Ground Clearance, Rear (in): 7.7
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0
• Side Door Opening Height (in): 47.9
• Step Up Height - Front (in): 19.3
• Step Up Height - Side (in): 20.0

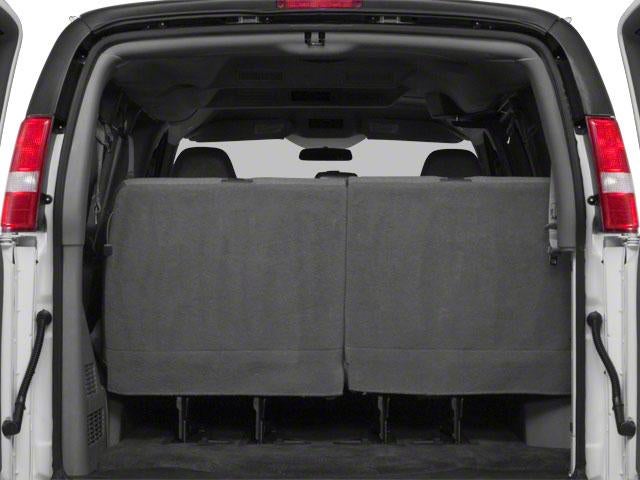

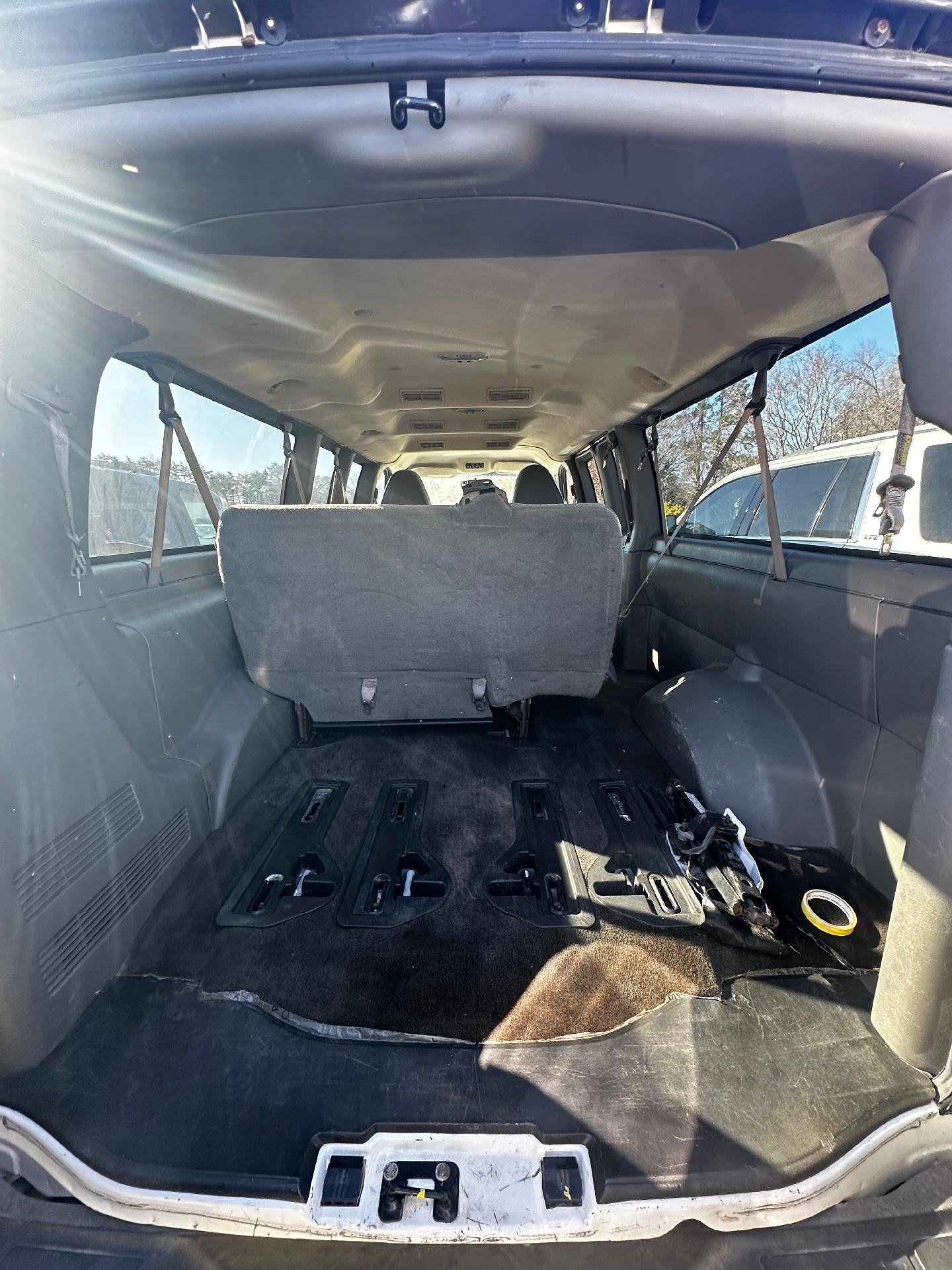

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 173.6
• Cargo Area Length @ Floor to Seat 1 (in): 147.8
• Cargo Area Length @ Floor to Seat 2 (in): 109.4
• Cargo Area Length @ Floor to Seat 3 (in): 77.5
• Cargo Area Length @ Floor to Seat 4 (in): 45.6
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.5
• Cargo Box (Area) Height (in): 51.9
• Cargo Volume to Seat 1 (ft³): 252.6
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): - TBD -
• Cargo Volume to Seat 4 (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 12
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.5
• Second Head Room (in): 38.5
• Second Leg Room (in): 34.8
• Second Shoulder Room (in): 68.9
• Second Hip Room (in): 66.0
• Third Head Room (in): 38.6
• Third Leg Room (in): 37.6
• Third Shoulder Room (in): 63.5
• Third Hip Room (in): 64.4
• Fourth Head Room (in): 38.1
• Fourth Leg Room (in): 39.8
• Fourth Shoulder Room (in): 68.3
• Fourth Hip Room (in): 59.6
• Summary

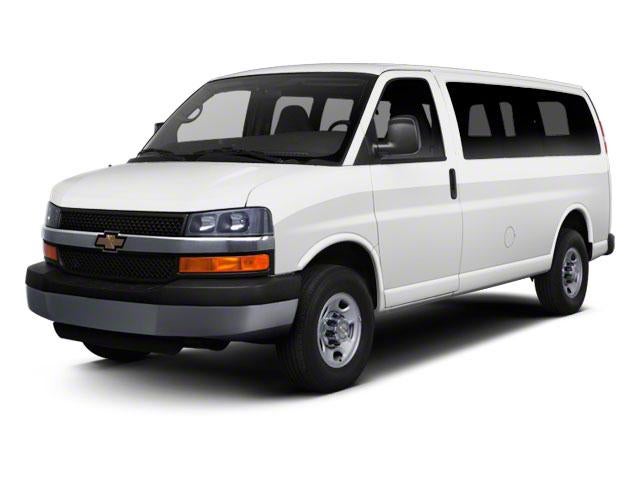

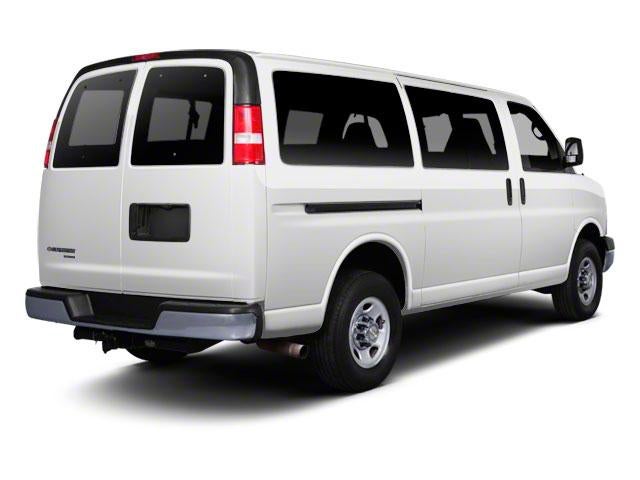

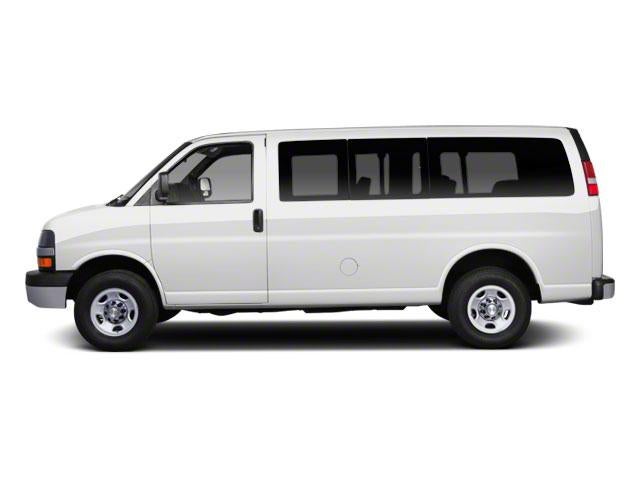

• Vehicle Name: Chevrolet Express Passenger
• Body Style: 3500 155" WB
• Body Code: ZW9
